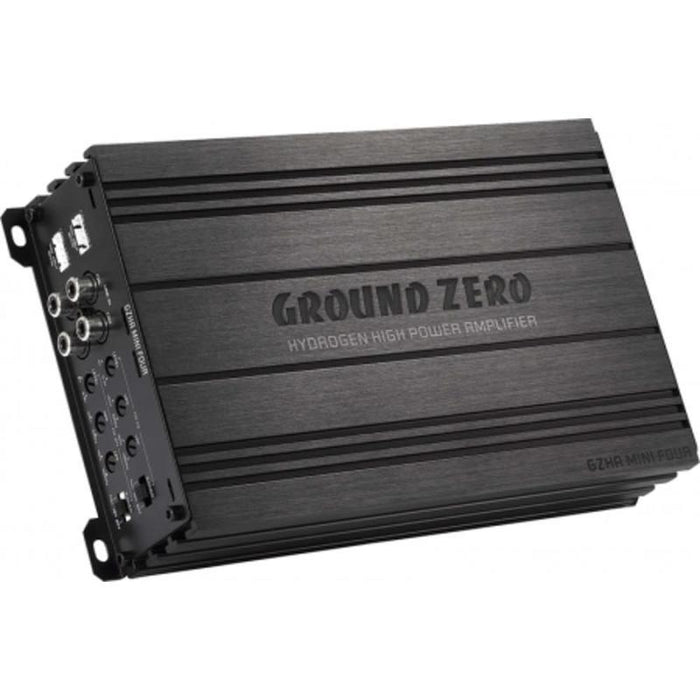

GZHA MINI FOUR

GZHA MINI FOUR

€280,00
SKU

- High efficient class D mini amplifier - Extreme compact size - 2 Ohm stable stereo (MINI TWO / FOUR) - 1 Ohm stable mono / 2 Ohm linkable (MINI ONE) - High-level input with Auto-On - 12 dB adjustable bass boost (@45 Hz) (MINI ONE) - Adjustable wide-range filters - Adjustable input sensitivity - Bass remote control (MINI ONE & MINI TWO) - Thermal / short circuit / overload protection



 - High efficient class D mini amplifier
 - Extreme compact size
 - 2 Ohm stable stereo (MINI TWO / FOUR)
 - 1 Ohm stable mono / 2 Ohm linkable (MINI ONE)
 - High-level input with Auto-On
 - 12 dB adjustable bass boost (@45 Hz) (MINI ONE)
 - Adjustable wide-range filters
 - Adjustable input sensitivity
 - Bass remote control  (MINI ONE & MINI TWO)
 - Thermal / short circuit / overload protection

 Technical data


 *The WRMS output power is based on the CEA Standard CEA-2006-A ( 14.4V, 1% THD)


Model
GZHA MINI FOUR
Type
4 Ch Class D
Output Power @ 4 Ohm (CEA*)
4 x 80 W
Output Power @ 2 Ohm (CEA*)
4 x 130 W
Output Power @ 1 Ohm (CEA*)
-
Bridge mode @ 4 Ohm (CEA* / 10% THD)
2 x 320 W
Bridge mode @ 2 Ohm (CEA* / 10% THD)
-
Output power linkmode 2 Ohm
-
24 Volt Unit
-
18 Volt stable
-
Lowpass
40 - 4000 Hz
Highpass
10 - 500 Hz
Bandpass
10 - 4000 Hz
Subsonic
-
Bassboost
-
Phaseshift
-
Adjustable Q-factor
-
Variable Bias Setting
-
Bass remote
-
High Level in
Ja / Yes
Line Out
-
Illumination
-
Dimensions cm / Inch
13,5 x 5,2 x 21 cm / 5.32" x 2.05" x 8.27"
