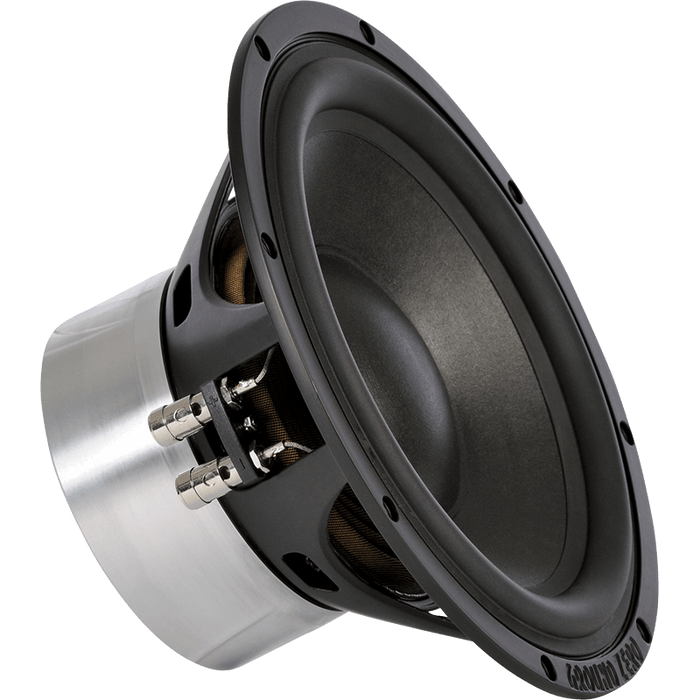

GZPW Reference 250

500 Watts RMS

10″ high end sound quality subwoofer with aluminum cast basket and coated paper cone

• 10″ high end subwoofer
• Klippel® optimized
• 3-layer sandwich cone
• Leightweight rubber surround
• Solid aluminum cast basket
• 50 mm / 2″ copper voice coil
• 2-layer Bimax spider
• Coated paper dust ca

• Model	High-End SQ subwoofer
  Diameter	25 cm / 10"
  Power Handling (RMS)	500 Watts
  Impedance	2x 2 Ohms
  Efficiency	87 dB
  Power Recommendation	300 – 600 Watts
  Voice Coil	50 mm / 2" copper
  Max. Excursion (Xmax)	40 mm / 1.57"
  Mounting Depth	128 mm / 5.04"
  Resonance Frequency (Fs)	31 Hz
  Overall Qaulity (Qts)	0.53
  Equiv. Air Volume (Vas)	31.47 L / 1.11 cu.ft.
