GZNW 12SPL-Xflex
€600,00
SKU

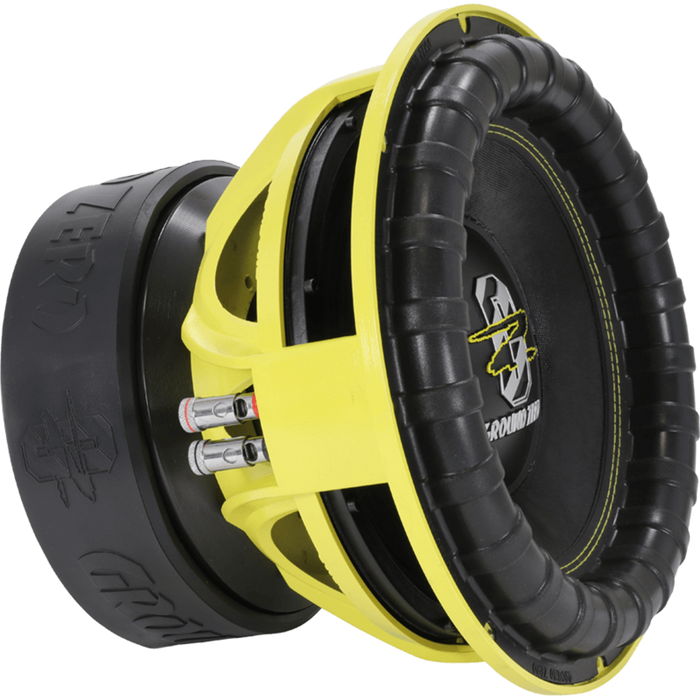

GZNW 12SPL-Xflex 30 cm / 12″ high performance SPL subwoofer
4500 Watts SPL
12″ high performance SPL subwoofer with aluminum cast basket and Xflex surround
- 15″ high power SPL subwoofer with neodymium motor
- Klippel® optimized
- Reinforced paper cone
- SPL Xflex surround
- Solid aluminum cast basket
- 75 mm / 3″ CCA round wire voice coil
- 4-layer progressive spider
- IMPP dust cap with 3D structure logo
| Model | High-Performance SPL Subwoofer |
|---|---|
| Diameter | 30 cm / 12" |
| Power handling (RMS/SPL) | 2500 / 4500 Watts |
| Impedance | 2x 1 Ohms |
| Efficiency | 87 dB |
| Power recommendation | 1500 – 4500 Watts |
| Voice coil | 75 mm / 3" CCA |
| Cone | Fiber reinforced paper |
| Max. Excursion (Xmax) | 60 mm |
| Mounting depth | 226 mm |
| Resonance frequency (Fs) | 33.9 Hz |
| Damping ratio (Qts) | 0.361 |
| Equiv. air volume (Vas) | 27.3 L |
