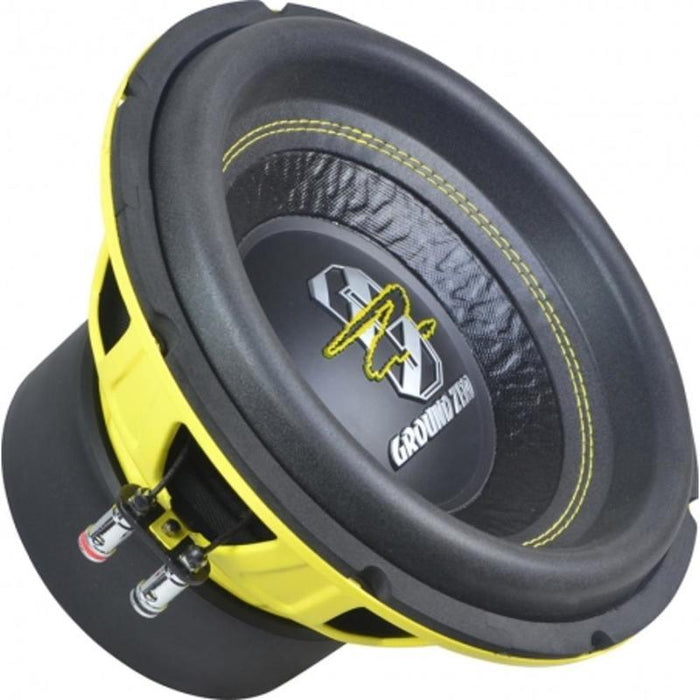

GZIW 10SPL
€130,00
SKU
25 cm / 10" SPL Subwoofer - 2 x 2 Ohm - 700 W SPL
| Features |
- High power SPL subwoofer
- Klippel® optimized
- Reinforced paper cone
- 2.5” copper round wire voice coil
- High-Roll sandwich surround
- Progressive 2-layer spider
- Push terminals
| Technical data |
*Describes the subwoofer's ability for each kind of use.
☺ = Good ability
☺☺☺☺☺☺ = Excellent ability
Model
GZIW 10SPL
Diameter
25 cm / 10"
Mounting diameter
257 mm / 10.12“
Mounting depth
147 mm / 5.79“
Voice coil
63 mm Kupfer Runddraht Schwingspule / 2.5” copper round wire voice coil
Cone
Verstärkte Papier Membrane / Reinforced paper cone
Power Handling
700 W SPL
Impedance
2 x 2 Ohm
SPL
84 dB
Xmax
25 mm / 0.98"
Fs
40.8
Qts
0.62
Vas
14.3 L / 0.505 cu.ft.
Sound Quality*
☺☺
SPL Competition*
☺☺☺
Low bass performance 20 - 50 Hz*
☺☺
Mid bass performance 50 - 80 Hz*
☺☺☺
Box recommendation vented
40 Liter netto / 1.57 cu.ft. net - Rohr / Tube 1x Ø8 cm / 1 x 3.15” L= 24 cm / 9.45”
Box recommendation sealed
18 – ~500 Liter netto / 0.64 – 17.66 cu.ft. ne
